| FORD-4S Product Details (DISCONTINUED) |
TEMP:170° DIAM:54mm TYPE:Hot-side, Bypass
|
|
Our FORD-4S product was discontinued in 2020 however we recommend the Motorad 2028-170 as an inexpensive alternative for these applications.
|
 |
|

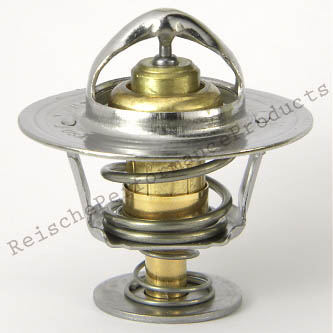

The FORD-4S is a premium thermostat with a larger heat motor/spring assembly for more precise temperature control along with a heavy-gauge chrome plated steel housing. 100% made in the USA.
|
| All Reische Performance thermostats ship with an OEM O-ring and are backed by a 5 YEAR WARRANTY. |
| COMMON APPLICATIONS |
|
| 2011-2014 F150 & Raptor 6.2L |
2000-2005 Excursion 5.4/6.8L
|
| 2007-2010 Mustang GT 4.6L |
1997-2014 Expedition/Navigator 4.6/5.4L
|
| 1996-2004 Mustang GT 4.6L** |
1996-2019 E/F Series & Super Duty (gas)4.6/5.4/6.2/6.8L
|
| 1997-2010 F150 4.6/5.4/6.2L |
1992-2011 Crown Vic 4.6L |
|
|
**2005-2006 Mustang GT & 1996-2004 Mach 1/Cobra use FORD-4D
|
| This thermostat fits many more vehicles- if you are unsure if this product fits your application then find your vehicle's Motorcraft thermostat (RT #) and use our Motorcraft Thermostat Cross Reference in our Application Guide. |
|
HANDHELD PROGRAMMER RECOMMENDED FAN SETTINGS
|
| Fan ECT1 High On: 190° |
Low Fan Speed: 186° (shuts off @178°)
|
| Fan ECT2 High On: 190° |
High Fan Speed: 190°
|
| Fan Low Off: 182° (shuts off @180°) |
|
| A retune is generally not required with use of our thermostats, however to get the best possible heat dissipation and most consistent temps, your fan settings should be lowered in your tune. Otherwise a low temp thermostat will only be effective when the vehicle is moving because heat cannot be removed unless there is air passing through the radiator. Unfortunately there are few programmers available at this time capable of modifying fan settings in most of the new Ford engine management systems. The fan speed tables will need to be adjusted through a custom tune (available from most of our vendors) or via tuning software. These new systems estimate coolant temps based on readings from a dry head temp sensor. However these ‘inferred’ ECT values can be more volatile and may read as much as 8-10° hotter than actual coolant temps. This means that a vehicle using our 170° thermostat could see ECT anywhere between 165-205°, depending upon conditions and fan settings. We rely on your feedback, so please let us know if you become aware of any new developments in managing the fan settings for these applications. |
| Vehicle: 2002 Mustang 4.6L - FORD-4S - Roush Stg 1 Pkg - Test Date: Aug 12, 2009 |
| Conditions: Engine @ operating temp, AC on/cooling fan on, hood open, ambient temps 93-97° |
| Sustained idle: ECT 174°, IAT 120° |
| Note: 16° idle temp differential between OEM RT-1196 thermostat & Reische FORD-4S |
MOTORCRAFT THERMOSTAT CROSS REFERENCE
|
Motorcraft
RT-1075
RT-1103
RT-1115
RT-1118
RT-1138
RT-1144
RT-1147
RT-1153
RT-1165
RT-1177
RT-1178
RT-1195
RT-1196
RT-1204
RT-1234
RT-1254
|
Notes
Superseded by RT-1196
Superseded by RT-1196
Superseded by RT-1196
Navigator & early 6.8L
Superseded by RT-1196
S/C Lightning F150 - 180°
Excursion 6.8L & SD 6.8L
Superseded by RT-1196
Superseded by RT-1196
Super Duty 6.8L
Superseded by RT-1196
Super Duty 6.8L - 190°
4.6/5.4L SOHC - 190°/192°
6.2L - 194°
SD 6.2/6.8L - 192°
New OEM V8 - 192°
|
|
 |
